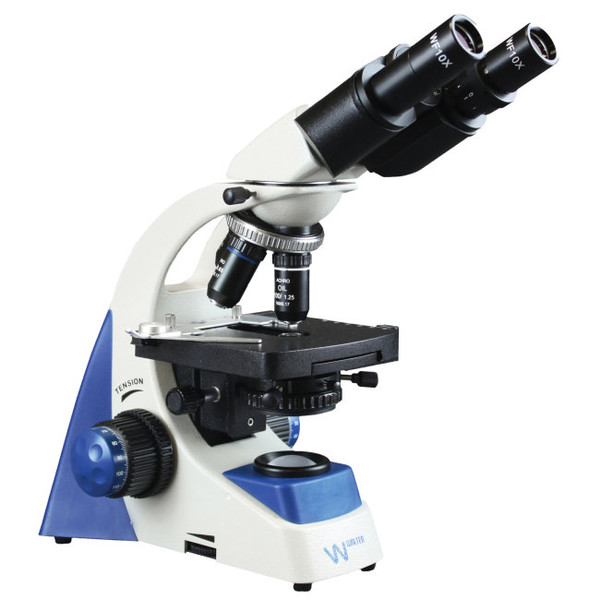

50 Series Binocular Microscope

Creative Science Product #: 22612-795

Product Description

The 50 Series Binocular Microscope is an ergonomically designed compact microscope that is robust, easy-to-use and super smooth.

This microscope has an interpupillary adjustment from 55mm to 75mm and a focusing system with low position coaxial coarse and fine focusing knobs with positive stop and tension adjustment. Features a focusing range of 14mm and fine focus graduation of 0.01mm. Uses a 1w LED light system with light intensity control. This binocular microscope comes with a dust cover and instruction manual.
How to Purchase
How to Purchase
How to Purchase
How to Purchase
How to Purchase
  • Ergonomically designed metal frame, arm and base
  • 30° Siedentopf binocular head
  • Standard 10X/18mm wide-field eyepieces
  • Focusing range of 14mm, fine focus graduation of 0.01mm
  • 1w LED light system with light intensity control
Cautions: Keep out of reach of children and animals.

Specs:
  • 30° Siedentopf binocular head that is 360° rotatable
  • Standard 10X/18mm wide-field eyepieces, diopter adjustment on right eyepiece tube, calibrated pointer on one eyepiece
  • Features an interpupillary adjustment from 55mm to 75mm
  • 125 x 125mm built-in double layer mechanical stage with smooth X/Y calibrated movement with cross travel range of 60 x 40mm
  • Focusable 1.25N.A Abbe condenser and rack-and-pinion iris diaphragm with 2-30mm adjustable aperture
