Type of Microscope: | LCD Desktop |
Head: | 180° roatatable head w/4.3" TFT LCD Screen |
Nosepiece: | Quad with click stop |
Objective(s) Type: | (4) Achromatic objectives on turret |
Objective(s) Standard: | DIN 35 RMS |
Objective(s) Magnification: | 4x, 10x, 20x, 40x |
Objective(s) Thread: | WJ 4/5" x 1/36" |
Focus Type(s): | Course Focus | Fine Focus |
Focus Travel (per rotation): | 0.7mm to 35.3mm (.027" to 1.39") (est.) |
Magnification Range: | 40x, 100x, 200x, 400x | Up to 1600x with digtial zoom |
Illumination Type: | LEDs |
Illumination Position(s): | TBD |
Illumination Adjustability Mechanism: | Adjustable wheels at base |
Power Source: | Universal 100 to 240V, 50/60 hz multi-country plug | (4) AA (optional) |
Battery Options: | Yes (4AA) |
Stage: | Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") | With Filter wheel | Red, blue, green | 1mm, 3mm, 6mm apertures |
Condenser Type: | Aplantic |
Condenser N.A.: | N.A. 65 |
Stage Diaphragm: | Multiple on wheel |
Eyepiece Type: | CMOS Sensor in lieu of eyepiece |
Sensor Size: | 5MP | 1/2.5" |
Pixel Size: | 2.2 μm |
Screen type: | High definition touch, 480 x 272 pixels resolution, 109mm (4.3") with 4x digital zoom, rotates 180° |
Screen Size: | 4.3" |
Memory Type: | SD Card |
Memory Size: | 8G SD included | Supports up to 32G |
Port(s) In: | AC Plug (power) | SD Card slot (32Gmax) |
Port(s) Out: | Video/ TV out | USB 2.0 |
AC Adapter: | 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long |
Still image capture resolution: | 1920x1080 | 2048x1152 | 2560x1440 | 3072x1728 | 3648x2048 | 3072x1728 |
Video resolution: | VGA (640 x 480) |
Shutter trigger position: | On LCD Screen |
Software: | Internal Firmware |
Pinch To Zoom
Product Description

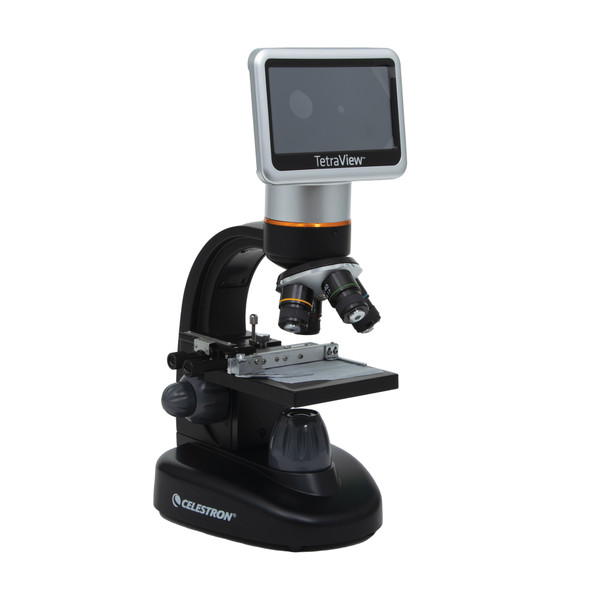

Celestron TetraView LCD Digital Microscope. This microscope is affordable, yet offers advanced features. These include 4 fully achromatic objective lenses, a mechanical stage, a 4.3" TFT color LCD touchscreen, a 5-megapixel CMOS sensor, and a 2-GB SD
