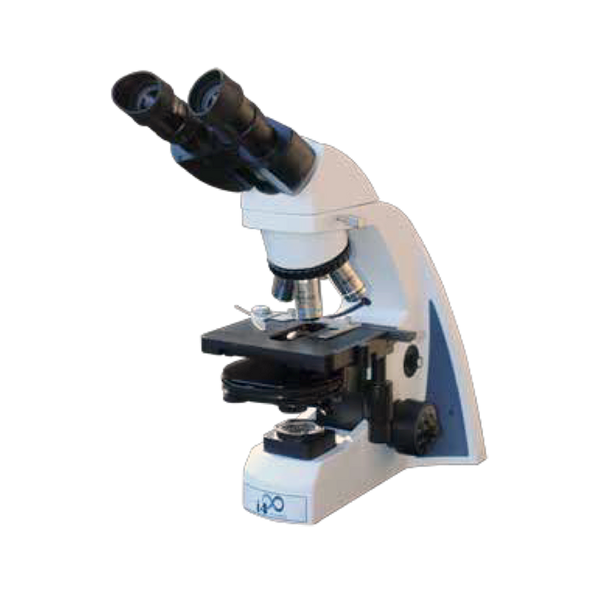

i4 Semen Evaluation Microscope

• Phase Contrast
• Built in Heated Stage

Perfect for veterinarians or fertility clinics, the new i4 Semen Evaluation LabScope is the complete package for live specimen microscopy. Motility analysis should be performed at 98.6 degrees Fahrenheit to keep sperm active, and the heated stage has a built-in digital temperature control unit which can be set for any temperature up to 110 degrees Fahrenheit. The heated stage will maintain accurate and stable temperatures within +/- 0.3 degrees during observation. This microscope looks and functions like a standard laboratory-grade microscope when in brightfield configuration. The Plan phase objectives and turret condenser allow flat-field, high-contrast viewing of live, unstained specimens, and easy magnification changes with the flip of the thumb.

Applications
Semen evaluation - motility analysis
Live biological specimen analysis
Functions as standard brightfield microscope as well
Portable: Can operate with battery power

System Features
10X/20 WF eyepieces with rubber eye guards
Built-in heated stage
X-Y mechanical stage for precise slide movements
Built-in digital temperature control unit
Infinity plan flat-field objectives
Phase 10x, Phase 20x, Phase 40x, Phase 100x
Turret condenser with Phase and Brightfield
Variable LED illumination
110v / 220v auto-switching AC power adapter
CE, UL, cUL approved
Stage and microscope powered by single integral 12v DC power supply
Optional trinocular head with camera connections

Height: 16 1/2"
Length: 10 5/8"
Width: 7 7/8"
Weight: 16.5lbs
